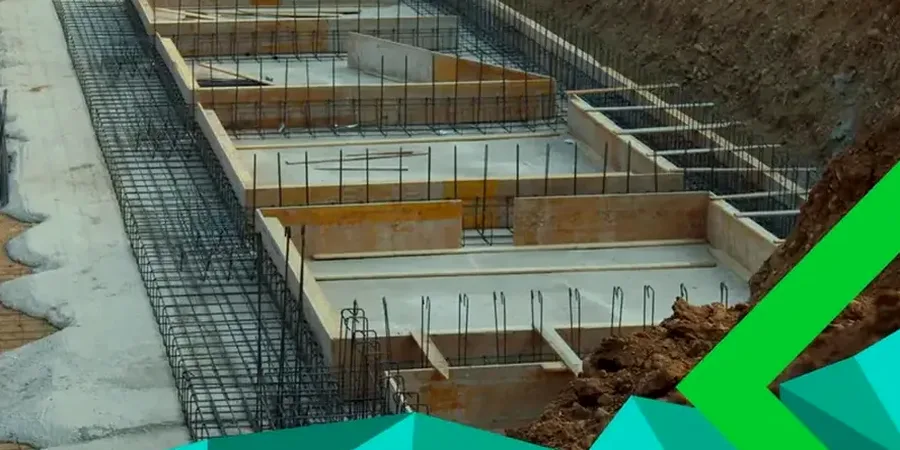

The coastal geology of Bournemouth does not forgive generic designs. The transition from the London Clay basement to the overlying Branksome Sand Formation creates a patchwork of bearing strata across the city, often compounded by a water table that sits barely a metre below the surface in areas like Westbourne and Southbourne. A rigid spread footing that works perfectly on the gravels of Talbot Woods may be completely inadequate for the loose dune sands found near the seafront. This variability means that desk studies alone are rarely sufficient; ground truth must come from targeted investigation. Before defining the geometry of a footing, we routinely cross-check SPT refusal depths against the risk of differential settlement, and when the stratigraphy suggests cemented layers within the Branksome Sand, we complement the borehole logs with a CPT test to capture thin weak seams that a standard sampler might miss entirely.
A two-metre variation in bearing stratum across a single site can turn a simple strip footing into a settlement problem—we identify that boundary before the concrete is poured.
Service characteristics in Bournemouth
Typical technical challenges in Bournemouth
A six-storey residential frame we reviewed on Wimborne Road taught us a hard lesson about the Branksome Sand. The initial design assumed a uniform 150 kPa bearing capacity based on a single borehole that hit dense sand at 2.2 metres. But the south-east corner of the site sat directly over a silt-filled hollow—an old drainage channel from the Pleistocene—with SPT N-values of just 4 to 6. The structural engineer was facing a potential angular distortion exceeding 1/200, enough to crack non-load-bearing partitions and jam lift guides. We redesigned the shallow foundation scheme as a reinforced raft with a stiffened edge beam, bridging the soft pocket without resorting to deep piles. The takeaway is simple: in Bournemouth, the ground can change within the span of a single terrace house, and ignoring the micro-topography of the buried Chines is a direct path to post-construction claims.
Our services
Our foundation design methodology for Bournemouth sites integrates direct push data, laboratory index testing, and settlement analysis under serviceability limit states.
Bearing Capacity & Settlement Analysis
Calculation of ultimate and allowable bearing pressures using the general shear failure method on Branksome Sand, coupled with Schmertmann settlement analysis calibrated to CPT tip resistance. We deliver design bearing values with partial factors applied per UK National Annex DA1 Combination 2.
Ground Model Development for Shallow Footings
Integration of dynamic probe logs, window sampler recovery, and particle size distribution from disturbed samples to construct a 3D stratigraphic model. This identifies the depth to competent bearing stratum across the footprint and flags any soft zones requiring localised excavation or geogrid reinforcement.
Frequently asked questions
What is the typical allowable bearing pressure for strip footings on Branksome Sand in Bournemouth?
For a medium-dense Branksome Sand with SPT N-values between 15 and 25, allowable bearing pressures under Eurocode 7 typically range from 125 to 200 kPa for strip footings at 1.0 m embedment. However, settlement often governs before shear failure, and we reduce these values where silty bands or high water tables are present.
How do you handle the high groundwater table in areas like Westbourne?
We specify a minimum embedment depth that places the underside of the footing above the seasonal high water table where possible, and we design the concrete mix to BRE SD1 sulfate class requirements. If the footing must sit below the water table, we include a working platform of compacted crushed rock and consider dewatering during construction.
Do you need a full ground investigation report before designing shallow foundations?
Yes. BS EN 1997-2 requires a ground investigation sufficient to define the ground model and characteristic values. We typically recommend a combination of dynamic probing, trial pits, and laboratory particle size analysis to satisfy the code requirements for a safe shallow foundation design.
What is the cost range for a shallow foundation design package in Bournemouth?
For a typical residential or light commercial project, the design package—including geotechnical interpretive report, bearing capacity calculations, and settlement analysis—falls between £1,640 and £2,410, depending on the complexity of the ground model and the number of foundation types required.
